1、Product Introduction

A double pump consists of two independent single pump, each pump have their own independent oil suction and oil outlet. The double pump only has one drive shaft, which simultaneously drives the two pumps.

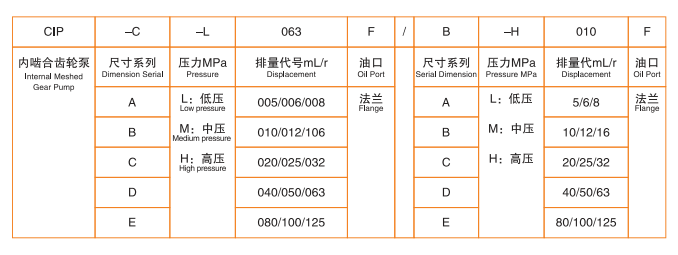

2、Model

CIP – C - L 063 F / B – H  010 F

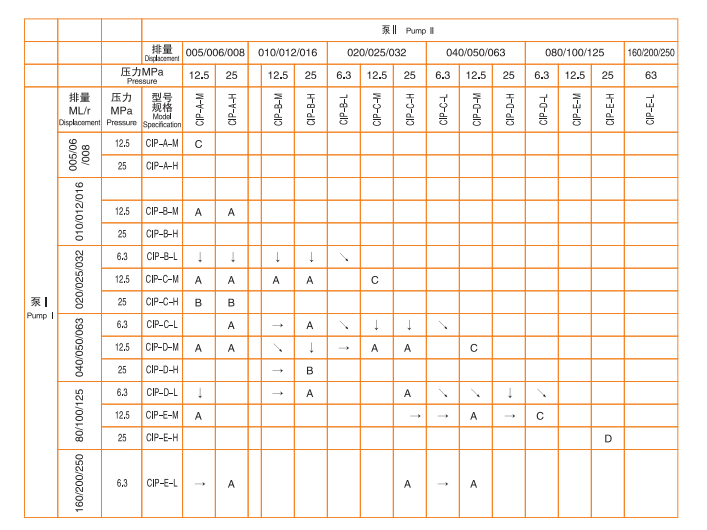

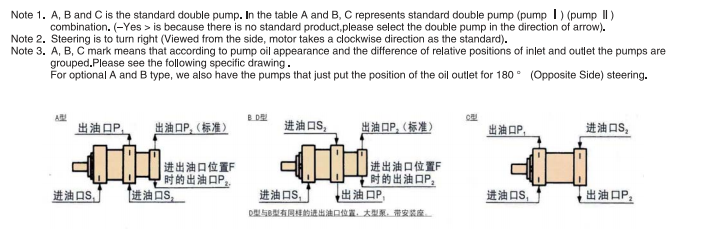

Duplex Pump Combinative Table

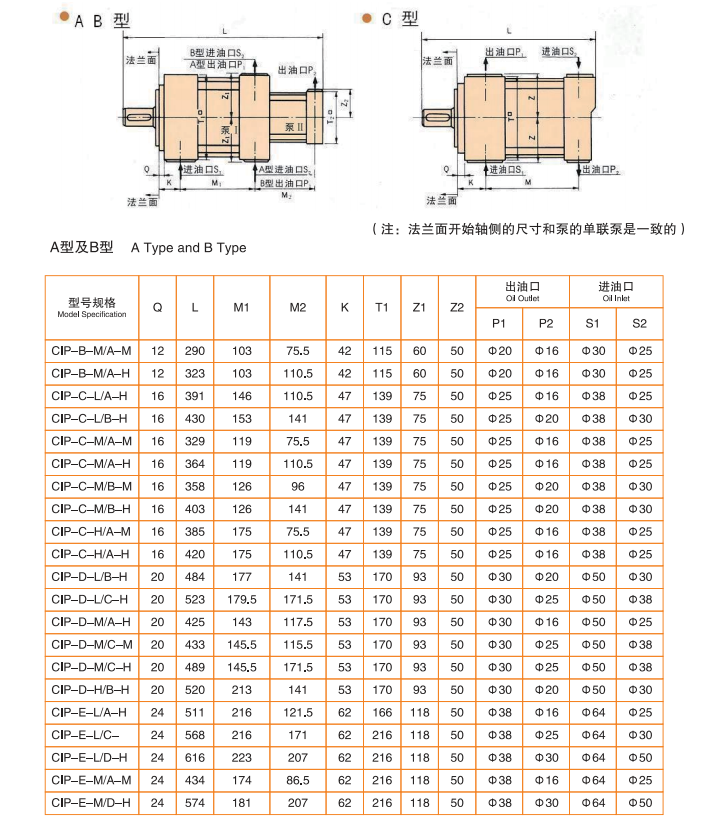

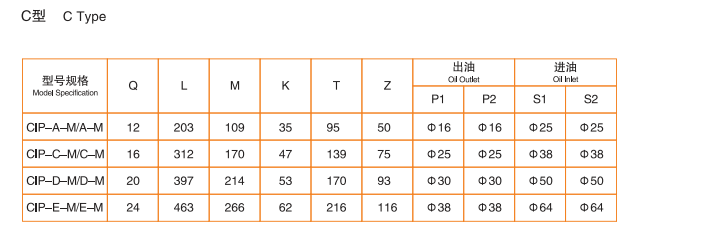

3、External Dimensions Drawing
