1、Product Introduction

BCJ is conical pilot-operated reducing valves.The second pressure of valve is proportion to input electric signal.This type of valve works through electric amplifier to provide drive current for proportion electrio-magnet to adjust second working pressure of valve.

BCJ serial proportion pressure-reducing valve is composed of direct-acting proportion relief valve and pilot-operated reducing valves with seat valve structure.With high flow scope ,the valve is used in system by-pass to adjust by-pass system working pressure.

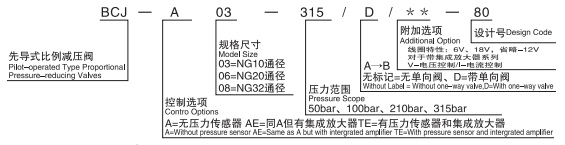

2、Model Code

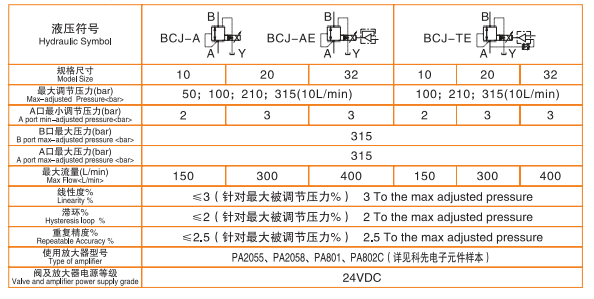

3、Performance Data(based on tem50°C,VG46,NAS9)

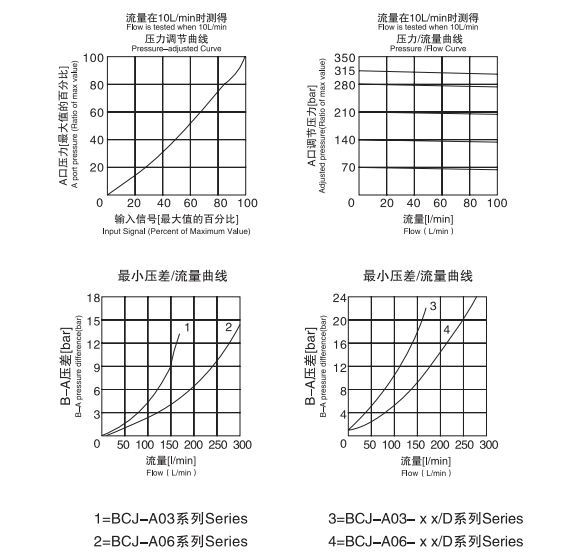

4、Working Curve(Oil Tem 50°C,46#anti-wear hydraulic oil)
